Hands-on Review: Aeotec Wallmote Quad Remote Control

Review - Aeotec Wallmote Quad - Front View - VueVille

When you are new to the world of smart homes and home automation, controlling your smart home through your smartphone seems super cool.

But once the novelty wears off, you might start missing the simplicity of physical switches. Or you may want to change home alarm modes or run scenes with just a single touch of a button, instead of pulling out your smartphone each time.

After all, a smart home is all about convenience and improving your quality of life.

That’s where the Aeotec Wallmote Quad comes in.

Aeotec – who are they?

Aeotec used to belong to Aeon Labs, the company founded in 2006 and based out of Silicon Valley. But that’s no longer the case. Aeotec also have another brand that’s popular in the smart home market – Popp. They also are an OEM for Oomi.

back to menu ↑

Un-boxing

The Aeotec Wallmote Quad is comes in a blue and grey box. As always with Aeotec, the box is no larger than it needs to be and avoids needless plastics and packaging. The front of the box just hsows the Wallmote itself and the rear highlights Z-Wave Gen 5 compatibility and the Z-Wave Plus chipset used. The model number is also mentioned – I got the ZW130-C which is the 868.42 MHz version.

Review - Aeotec Wallmote Quad - Box Contents - VueVille

Opening the box yields the Wallmote Quad, a mounting plate for wall mounting , a concise quick start guide, warranty note and a USB cable.

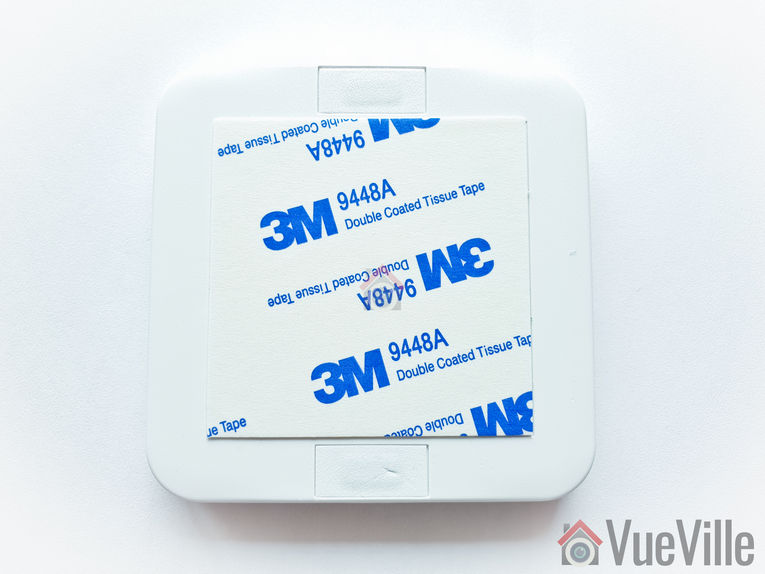

Here’s what the mounting plate looks like:

Review - Aeotec Wallmote Quad - Back View 2 - VueVille

back to menu ↑

Specifications

  • 4 touch-sensitive button areas
  • Multi-colour RGB LED
  • Sound and haptic feedback (vibration)
  • Model number: ZW130
  • Power supply: Rechargeable lithium battery, 3.7 V, 640mAh
  • Battery charger input: Micro USB port, DC 5V±0.5V, max 1A
  • Operating temperature: 0°C to 40°C
  • Relative humidity: 8% to 80%
  • Operating distance: Up to 394 feet/120 metres outdoors
back to menu ↑

Design and Hardware Features

The Wallmote Quad measures just 7.7cm wide and 1.9cm deep (3.0 x 0.4 inches). The front face of the Wallmote Quad is divided into 4 squares, each representing a button area. An RGB LED separates the four buttons and indicates a successful press along with haptic feedback and a beep sound.

The four button areas are capacitive, they do not depress and do not need pressure to activate.

Review - Aeotec Wallmote Quad - Front View 2 - VueVille

The bottom of the Wallmote has a speaker grill.

Review - Aeotec Wallmote Quad - Bottom View - VueVille

The rear of the Wallmote has the Action button, and the micro-USB port for charging the built-in battery.

Review - Aeotec Wallmote Quad - Back View - VueVille

back to menu ↑

Software Features

OTA Firmware Updates

The WallMote Quad supports Over The Air (OTA) feature for firmware upgrades. You will need an Aeotec Z-Stick USB controller to use this feature.

Read: Hands-on review of the Aeotec Z-Stick USB controller.

Compatibility with HA Software

My Z-Wave controller software, HomeSeer HS3 supports the Wallmote Quad. Samsung SmartThings doesn’t officially support this remote, but you can make it work by setting up a device handler in the SmartThings IDE.

back to menu ↑

How to use the Wallmote Quad

The Wallmote Quad can be used to control Z-Wave devices or activate scenes by touching, long pressing or sliding any of the four button areas.

The buttons act as toggle switches when you do a single touch action. Touch once to turn the switch on and touch again to turn the switch off.

When you activate any of the 4 buttons on the front face, the RGB LED will blink blue to indicate successful transmit and receipt of the command by your HA hub. If the command was not acknowledged by the hub, the LED will blink blue to indicate successful transmit but then blink red once because the command was not acknowledged by the hub.

If the battery is low, it will just blink orange. Plug in Wallmote with the USB cable and it will glow solid orange indicating that the battery is being charged.

You can either install the Wallmote in the wall and keep it permanently powered over USB or use it as a portable remote control. This is possible thanks to the 640mAh built-in rechargeable battery.

back to menu ↑

Installation and Setup

Installing the Wallmote Quad

  1. Select a place or wall to install the WallMote Quad.
  2. Clean the surface with a damp towel to remove any dirt or oils present. When the surface has completely dried, peel the tape backing on the mounting plate away and attach it to the surface.
  3. Now simply attach the Wallmote Quad to the backing plate using the built-in magnets. That’s it.

Pairing the Wallmote Quad

  1. As per the quick start guide, I set HomeSeer HS3 into ‘Inclusion mode’. For this I navigated to Plugins > Z-Wave > Controller Management. Under Actions, I selected ‘Add/Include a Node’ and clicked the Start button.
  2. Then I pushed the ‘Action’ button on the back of the Wallmote Quad.
  3. At first it was solid green for a couple of seconds as per the manual.
  4. It then started flashing orange. HS3 took a minute to set up the Quad and then reported that it had successfully been added to the Z-Wave network.
  5. However the Quad kept flashing orange for some more time before eventually stopping. It did not turn solid green for 2 seconds as the manual said. Nevertheless all the buttons show up in HS3 and work as intended.

In HomeSeer HS3, I now have four switch devices, four dimmer devices (multi-level switch type), a central scene device , a battery status device and a power management device. The central scene device detects press and hold/release actions.

back to menu ↑

My experience over 2 months of daily use

I tested the Wallmote Quad with an Aeotec Z-Stick Gen5 to control my Aeotec LED Bulb 6, and an Aeotec Doorbell 6.

Performance

The Wallmote was quite responsive and never missed any button presses. By this I mean that whenever the Wallmote beeped and lit up and vibrated to indicate a succesfu button press, HS3 always received the command. The delay between a successful button press and a command being executed, such as turning on a light, was instantaneous.

I used the single press and long press functions. I did not try the sliding gestures, as I don’t see myself using it that way. But if you want to use gestures to simulate a lamp dimmer or fan speed control, you can.

If there’s one quibble I have with the Wallmote, it is this: if you are using it as a portable remote control device, its difficult to say which way is up just by looking at it. There is a slight recess on the lower side where the speaker grill is, so you either have to feel it out or look at the back to figure out which way is up. A solution exists though – use a marker to write on the buttons. I would rather not do this because the device is so pretty.

Wireless Range

My current home is of solid concrete construction and so Z-Wave signals do struggle in general. The mesh network design of Z-Wave networks is how my whole home is reachable with just one Aeotec Z-Stick. Every powered Z-Wave device acts as a repeater.

So I was able to use the Aeotec Wallmote Quad throughout my home without any issues.

Battery life

I charge the wallmote once in 2 weeks on average. This is with light-medium usage (especially as my kids love turning certain scenes on and off).

back to menu ↑

Verdict

9.3 Total Score
Hands-on Review: Aeotec Wallmote Quad

A premium-looking Z-Wave remote control that can do anything your Z-Wave controller can.

Performance
9
Features
9
Quality
10
Value for Money
9
PROS
  • Minimalist premium design
  • Works well, responsive and reliable
CONS
  • Difficult to identify which button does what
User Rating: 5 (1 votes)
